What is Rotational Molding Tooling Design Process at Light Venus?

What is Rotational Molding Tooling Design Process at Light Venus?

The success of the rotational molding process heavily relies on the design and quality of the mold. A well-designed mold ensures the production of high-quality products with precise dimensions and smooth surfaces. The design process of rotational molding tooling involves several critical steps, including conceptualization, 3D modeling, mold design, consideration of constraints, prototype testing, final mold production, and quality control.

1. Understanding Product Requirements

The design and planning process of rotational molding tooling begins with a thorough understanding of the product requirements. This includes the product's dimensions, shape, wall thickness, functionality, and any specific design features. It is essential to gather all necessary information from the customer or product designer to ensure that the mold meets the desired specifications.

2. Material Selection

The choice of mold material is crucial for the durability and performance of the mold. Common materials used for rotational molding tooling include aluminum, steel, and stainless steel. Aluminum molds are preferred for their excellent thermal conductivity and lightweight properties, while steel and stainless steel molds offer higher strength and wear resistance. The material selection depends on factors such as the desired product quality, production volume, and budget.

3. Design Considerations

Several design considerations must be taken into account during the mold design process. These include:

a. Wall Thickness: The mold should be designed to achieve the desired wall thickness of the product. Uniform wall thickness is essential for product performance and durability.

b. Draft Angles: The mold should incorporate appropriate draft angles to facilitate easy removal of the finished product from the mold.

c. Parting Lines: The parting lines should be carefully planned to minimize their visibility on the final product. This ensures a smooth and aesthetically pleasing surface finish.

d. Cooling System: The mold design should include an efficient cooling system to ensure uniform cooling of the melted plastic, resulting in a product with consistent properties.

4. CAD/CAM Software

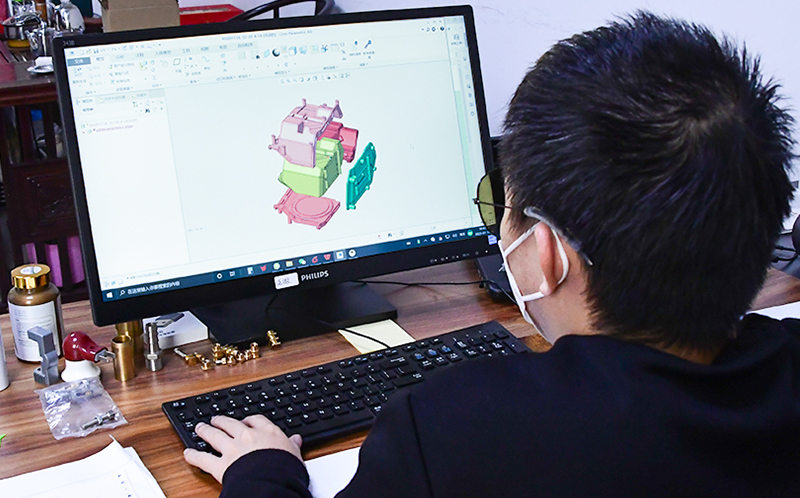

Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software are widely used in the design and planning process of rotational molding tooling. These software tools allow for the creation of detailed and accurate mold designs, as well as the generation of CNC machine code for mold manufacturing.

5. Prototype Development

Before proceeding with the production mold, it is often beneficial to create a prototype mold. This allows for testing and refinement of the mold design, ensuring that the final mold meets all product specifications and quality standards.

6. Mold Manufacturing

Once the mold design is finalized, the mold manufacturing process begins. This involves selecting the appropriate manufacturing techniques, such as CNC machining, casting, or welding, depending on the mold material and design complexity.

7. Quality Control

Quality control is a critical aspect of the mold manufacturing process. Regular inspections and testing should be conducted to ensure that the mold meets the required tolerances and specifications. This includes checking the mold dimensions, surface finish, and cooling system performance.

Light Venus is a professional custom rotational molding factory with rich experience. If you need any assistance or technical information in rotational molding tooling design, please feel free to contact us.
